Quiz

P4.5.5 THE D.C. MOTOR — Past papers

Submit quiz
Once you submit, you will no longer be able to change your answers. Are you sure you want to submit the quiz?
Cancel Submit

D.c. motor Combined Science past paper questions: free practice for Combined Science. Work through these D.c. motor Combined Science past paper questions and get instant feedback on every answer. If you get stuck, review the P4.5.5 The d.c. motor — Notes lesson. More practice: Combined Science — all units. Syllabus: Cambridge IGCSE qualifications.

  • Questions count: 8
  • Passing grade: B+
  • Time limit: 10 minutes
Start Quiz

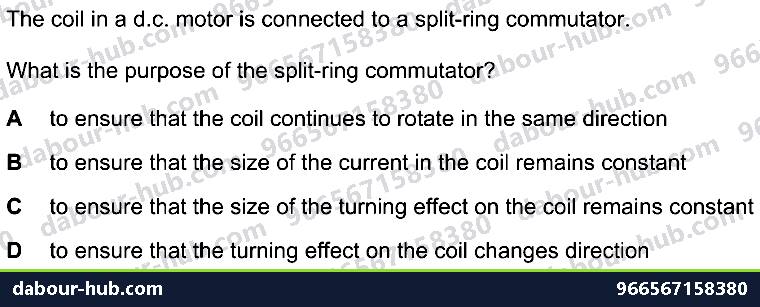

1.
IGCSE Physics 4.5.5 THE D.C. MOTOR - Question 2
IGCSE Physics 4.5.5 THE D.C. MOTOR - Question 2
A
B
C
D

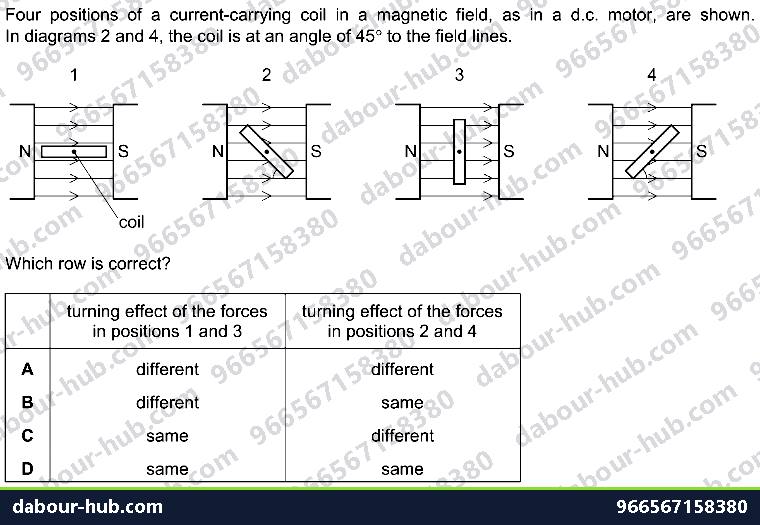

2.
IGCSE Physics 4.5.5 THE D.C. MOTOR - Question 3
IGCSE Physics 4.5.5 THE D.C. MOTOR - Question 3
A
B
C
D

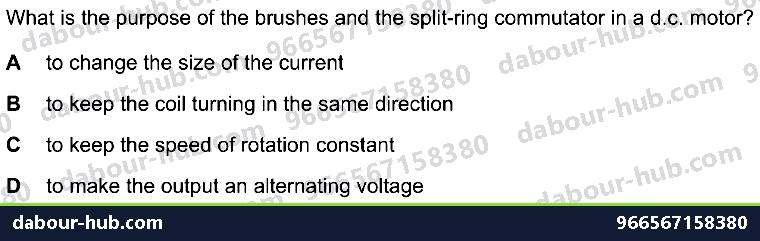

3.
IGCSE Physics 4.5.5 THE D.C. MOTOR - Question 4
IGCSE Physics 4.5.5 THE D.C. MOTOR - Question 4
A
B
C
D

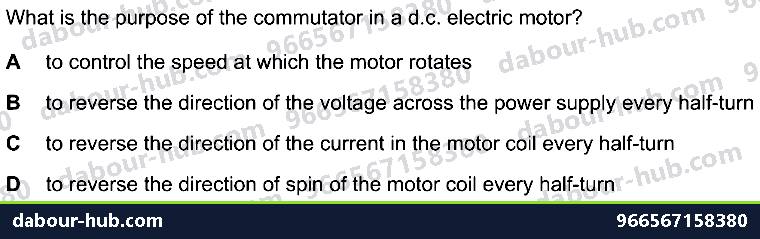

4.
IGCSE Physics 4.5.5 THE D.C. MOTOR - Question 5
IGCSE Physics 4.5.5 THE D.C. MOTOR - Question 5
A
B
C
D

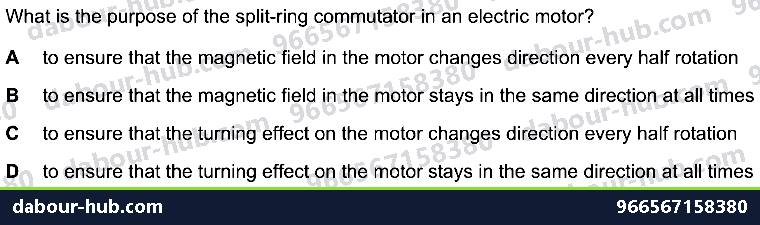

5.
IGCSE Physics 4.5.5 THE D.C. MOTOR - Question 6
IGCSE Physics 4.5.5 THE D.C. MOTOR - Question 6
A
B
C
D

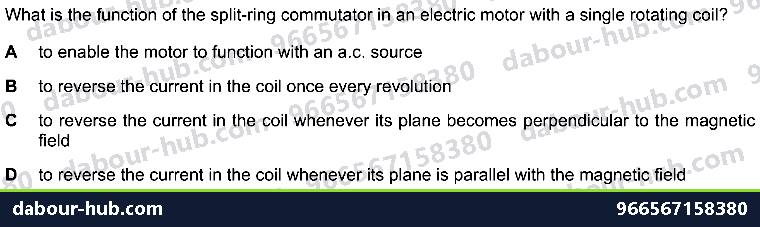

6.
IGCSE Physics 4.5.5 THE D.C. MOTOR - Question 8
IGCSE Physics 4.5.5 THE D.C. MOTOR - Question 8
A
B
C
D
7.
IGCSE Physics 4.5.5 THE D.C. MOTOR - Question 10
IGCSE Physics 4.5.5 THE D.C. MOTOR - Question 10
A
B
C
D
8.
IGCSE Physics 4.5.2 THE A.C. GENERATOR - Question 3
IGCSE Physics 4.5.2 THE A.C. GENERATOR - Question 3
A
B
C
D
  • 1
  • 2
  • 3
  • 4
  • 5
  • 6
  • 7
  • 8
Part of P4. Electricity and Magnetism — see every lesson and quiz in this unit.
