Checkpoint Grade 8 Unit 6 – 6.5 Solar And Lunar Eclipses

Submit quiz
Once you submit, you will no longer be able to change your answers. Are you sure you want to submit the quiz?
Cancel Submit

Solar And Lunar Eclipses Checkpoint Earth and Space quiz set 2: free practice for Cambridge Checkpoint Earth And Space 0893. Work through this Solar And Lunar Eclipses Checkpoint Earth and Space quiz set 2 and get instant feedback on every answer. If you get stuck, review the 5.5 Solar and lunar eclipses lesson. More practice: Cambridge Checkpoint Earth And Space 0893 — all units. Syllabus: Cambridge Lower Secondary programme.

  • Questions count: 50
  • Passing grade: B+
  • Time limit:
Start Quiz
1.
Which statement correctly describes solar eclipse?
Earth's shadow falling on the Moon
not allowing light to pass through
a region where light is blocked
the Moon blocking sunlight from reaching part of Earth
2.
Which statement correctly describes lunar eclipse?
the Moon blocking sunlight from reaching part of Earth
not allowing light to pass through
a region where light is blocked
Earth's shadow falling on the Moon
3.
Which statement correctly describes opaque?
the Moon blocking sunlight from reaching part of Earth
Earth's shadow falling on the Moon
a region where light is blocked
not allowing light to pass through
4.
Which statement correctly describes shadow?
the Moon blocking sunlight from reaching part of Earth
not allowing light to pass through
a region where light is blocked
Earth's shadow falling on the Moon
5.
Which of these is the FIRST step in the correct order?
an opaque body blocks rays
an observer sees an eclipse
align Sun, Moon and Earth
a shadow forms
6.
Which step comes immediately after "an opaque body blocks rays"?
align Sun, Moon and Earth
an observer sees an eclipse
a shadow forms
7.
Which practical work belongs to Solar And Lunar Eclipses?
Model echoes and apply reflection ideas to echolocation and room acoustics
Interpret cross-sections and use matching evidence such as fossils, rocks and coastline patterns
Use particle models and demonstrations to compare sound through different media
Use Sun–Earth–Moon models to predict alignment and shadow positions
8.

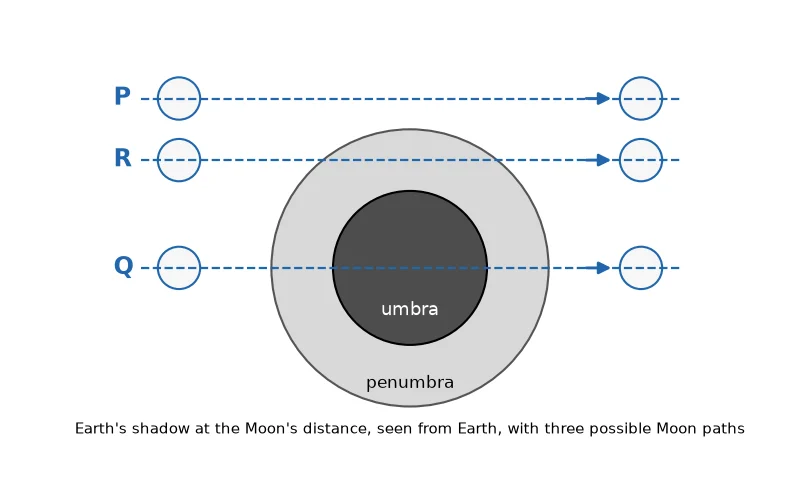

The diagram shows three possible paths of the full moon across Earth's shadow. Which path would give a total lunar eclipse?
Dr Dabour Hub Academy - figure 1
Path P, above the whole shadow
Path R, which passes through the penumbra only
Path Q, through the centre of the umbra
Paths P and R, but not path Q
9.

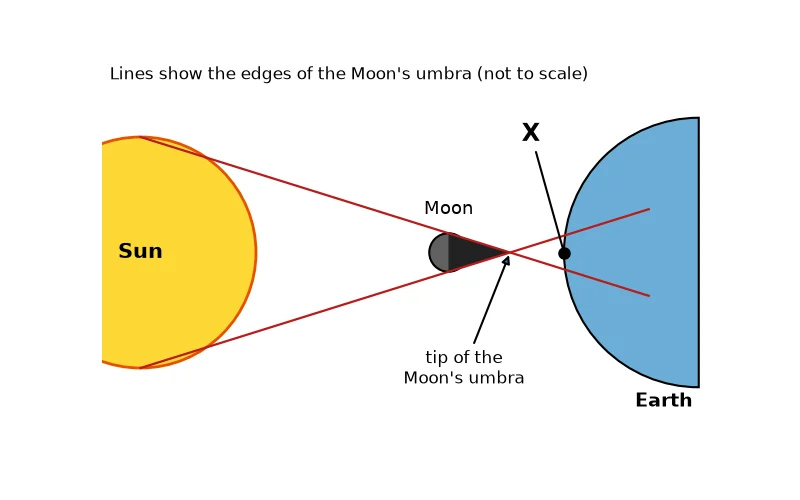

In the diagram the Moon is lined up between the Sun and Earth, but further from Earth than usual. The tip of its umbra does not reach Earth. What does an observer at X see?
Dr Dabour Hub Academy - figure 2
A bright ring of Sun around a dark Moon
A black Moon completely covering the Sun
A full moon turning dim and copper-red
The normal Sun, with no part covered
10.
A class recorded the air temperature during a total solar eclipse. Totality lasted from 11:02 to 11:05. What do the results show, and why?
Dr Dabour Hub Academy - figure 3
Lowest at about 10:00, as the Moon was giving out cold light
Lowest at about 12:00, as the Sun was most covered at noon
No real change, as the eclipse blocked light but not heating
Lowest at about 11:10, as less sunlight had been heating the ground
11.
Grade 8 students used a light meter to record the brightness of the Moon during a lunar eclipse. For about how long was the Moon completely inside Earth's umbra?
Dr Dabour Hub Academy - figure 4
About 5 hours 30 minutes
About 1 hour 10 minutes
About 3 hours 30 minutes
About 10 minutes only
12.
Sami drew this diagram and captioned it as a lunar eclipse. What is the best correction?
Dr Dabour Hub Academy - figure 5
It is correct; the Moon is always the middle body
The Sun should be in the middle for a lunar eclipse
It shows a solar eclipse; Earth must be in the middle
The Moon should be drawn bigger than Earth
13.
The diagram shows eight positions of the Moon in its orbit. Each option pairs a position with an event that could happen there. Which pairing is correct?
Dr Dabour Hub Academy - figure 6
Position 5 – a lunar eclipse
Position 1 – a lunar eclipse
Position 3 – a solar eclipse
Position 5 – a solar eclipse
14.
Which statement best explains the pattern of dates in the table?
Eclipses happen at every new and full moon, but most are too faint to be noticed
The tilted orbit lines up with the Sun–Earth line only about every six months
A lunar eclipse always causes a solar eclipse two weeks later
Eclipses can only ever happen in March and September
15.
For people exactly in line with the Sun and Moon, which of these eclipses could be total?
E3 and E4 only
E1 and E2 only
All four of the eclipses
None of the four eclipses
16.
Mei measured the shadow of a ball using light sources of different widths. What do her results suggest about the shadow of the Moon?
The Sun is a tiny source, so the Moon has no penumbra
The width of the Sun makes no difference to the shadow
A wider Sun would make the Moon's umbra much wider
The Sun is a very wide source, so the Moon's penumbra is large
17.
Which method in the table is NOT safe?
A – eclipse glasses let through too much light
B – a pinhole image is far too bright to look at safely
C – sunglasses let through enough light to harm eyes
D – screens let through harmful rays from the Sun
18.
Jana is building the scale model in the table to show eclipses. How far from the Earth ball should she place the Moon ball?
384 cm, about 3.8 m
38.4 cm, about 0.4 m
3840 cm, about 38 m
3.84 cm, under 4 cm
19.
Using Kiran's observations, where was the Moon at 21:40?
Completely inside Earth's umbra
In Earth's penumbra only
Partly inside Earth's umbra
Inside the Moon's own shadow
20.
One entry in Nour's table is wrong. Which correction should she make?
The Moon is the body in the middle in a lunar eclipse
A lunar eclipse happens at new moon, not full moon
A lunar eclipse is not safe to watch with the naked eye
Solar totality is seen only from a narrow strip of Earth
21.
Each option pairs a body with its role in a lunar eclipse. Which pairing is correct?
Moon – casts the shadow onto Earth
Sun – blocks the light from the Moon
Earth – lies in the Moon's umbra
Earth – casts the shadow
22.
Each option pairs a quantity with its value. Which pairing is correct?
Tilt of the Moon's orbit – about 45°
Longest solar totality – a few minutes
Sun's width compared with the Moon – about 4 times
Length of a total lunar eclipse – a few seconds
23.
Astronauts on a space station photograph a small, dark, round patch moving across Earth during a solar eclipse. What is the patch?
The Moon's umbra falling on Earth
Earth's own shadow on the clouds
A storm caused by the eclipse
The Sun's shadow on the ocean
24.
Why can a total lunar eclipse last over an hour, while total solar eclipses last only minutes?
The Moon moves much faster during a lunar eclipse than a solar one
The Sun moves across the sky faster at night than in the day
Earth's shadow is wider than the Moon, but the Moon's umbra on Earth is tiny
The Moon is closer to Earth during a lunar eclipse than a solar one
25.
Which sequence describes what is seen during a total lunar eclipse?
Whole Moon red → slight dimming → dark bite grows → bite shrinks
Dark bite grows → Moon vanishes → Sun appears → Moon returns
Slight dimming → Moon turns black → corona seen → Moon returns
Slight dimming → dark bite grows → whole Moon red → bite shrinks
26.
Ahmed found the edges of the shadow hard to see, so his umbra widths varied between measurements. What is the best improvement?
Use a brighter room so the edges of the shadow blend in
Darken the room and repeat each reading three times, then find the mean
Record only the largest width he measured each time
Move the lamp to a different place for each reading
27.
Which model best shows why a lunar eclipse can be seen from the whole night side of Earth?
Cover the globe's night side with figures; check which can see the ball in the shadow
Put one figure on the sunny side of the globe and shine the lamp straight at it
Move the ball between the lamp and the globe, then mark on the globe where the ball's shadow falls
Remove the lamp so that the whole globe and ball are in darkness
28.
A class model uses a 30 cm globe for Earth and a table-tennis ball 20 cm away as the Moon. What is the main weakness of this model?
The globe should be smaller than the Moon ball
The table-tennis ball is opaque, unlike the real Moon in space
The Moon is far too close compared with real distances
The lamp is a light source, unlike the real Sun
29.
Astronomers long ago noticed that the edge of Earth's shadow on the Moon is always curved, at every lunar eclipse. What does this suggest?
The Moon is flat, so shadows on it always look curved
Earth is flat, because its shadow never changes shape
The Sun is curved, so it makes curved shadows of anything
Earth is round, since only a sphere always casts a round shadow
30.
Leon writes: "A lunar eclipse is when the Moon blocks the Sun at night." Which is the best correction?
The Moon blocks the Sun, but in the daytime
Earth blocks sunlight from reaching the Moon
The Sun blocks the Moon's own light at night
Clouds block the Moon from the view of Earth
31.
Which term is described as: the Moon blocking sunlight from reaching part of Earth?
lunar eclipse
shadow
solar eclipse
opaque
32.
Which term is described as: earth's shadow falling on the Moon?
solar eclipse
shadow
lunar eclipse
opaque
33.
Which term is described as: not allowing light to pass through?
solar eclipse
lunar eclipse
shadow
opaque
34.
Which term is described as: a region where light is blocked?
solar eclipse
lunar eclipse
opaque
shadow
35.
Ahmed moved a light sensor across the shadow of a ball and plotted the graph. Using the graph, the umbra was about _____ wide.
Dr Dabour Hub Academy - figure 7
8 centimetres
5.5 centimetres
1.5 centimetres
3 centimetres
36.
The Moon's orbit is tilted at about _____ to Earth's orbit around the Sun.
45 degrees
5 degrees
90 degrees
0 degrees (no tilt)
37.
Unlike a solar eclipse, a lunar eclipse is safe to watch with the _____.
eyes shut tight
Sun behind a cloud
naked eye
lights switched on
38.
In Mei's investigation, the width of the penumbra is the _____ variable.
dependent (measured)
independent (changed)
control (kept the same)
uncontrolled (random)
39.
If the Moon followed path R in the diagram, it would look only slightly dimmer, with no dark "bite" taken out of it. True or false?
Dr Dabour Hub Academy - figure 8
False – the Moon would turn completely dark copper-red
True – the penumbra blocks only part of the light
False – the Moon would vanish completely
True, but only because path R is at new moon
40.
The lowest reading on the graph is about 2%, not 0%. This supports the idea that Earth's atmosphere bends some sunlight into the umbra. True or false?
Dr Dabour Hub Academy - figure 9
False – it shows the Moon makes its own light
False – the Moon never enters the umbra
True, but the light comes from other stars
True – that light makes the Moon glow red
41.
An astronaut standing on the Moon during a total lunar eclipse would see Earth blocking the Sun. True or false?
True – the Moon is in Earth's shadow
False – the astronaut would see a full Earth
False – the Sun would be behind the astronaut
True, but only for a few seconds
42.
If the Moon's orbit were not tilted, there would be a solar eclipse at every new moon and a lunar eclipse at every full moon. True or false?
False – eclipses would stop happening
False – the tilt has no effect on eclipses
True – the three would line up every month
True, but only lunar eclipses would occur
43.
During a solar eclipse, the Moon's penumbra covers a much larger area of Earth than its umbra, so far more people see a partial eclipse than a total one. True or false?
False – the umbra is the larger region
True – the umbra is only a narrow strip
False – both regions are exactly the same size
True, but partial eclipses happen at night
44.
Because the Moon is much smaller than Earth, its umbra can never cover the whole of Earth's day side. True or false?
False – the umbra covers all of the day side
False – the Moon is bigger than Earth
True, but it covers the whole night side at once instead
True – it covers only a small patch at a time
45.
A lunar eclipse can happen on a night when the Moon is a thin crescent. True or false?
False – it can only happen at full moon
True – any phase can be eclipsed at night
True, but only when the crescent is thin
False – it can only happen at new moon
46.
Earth's shadow has both an umbra and a penumbra because the Sun is a large light source, not a point. True or false?
False – Earth's shadow has an umbra only
False – the penumbra is caused by light reflected from the Moon
True – light from parts of the Sun reaches the edge
True, but only because Earth is transparent
47.
During a total solar eclipse the Moon appears as a black disc because the side facing Earth is not lit by the Sun. True or false?
False – the Moon switches off its own light
True – the lit side faces the Sun at new moon
False – the Moon is black because it is hot
True, but only when the Moon is a full moon
48.
A total lunar eclipse happens only when the whole Moon is inside Earth's umbra. True or false?
False – the penumbra is enough for totality
False – the Moon must be in the Sun's shadow
True, but only if the Moon is new
True – that is the definition of totality
49.
There are about two solar and two lunar eclipses a year worldwide, yet one town sees lunar eclipses far more often than solar ones. True or false?
False – towns see solar eclipses more often
False – each town sees every eclipse
True – lunar ones are seen from half the Earth
True, but only because lunar ones last minutes
50.
If the Moon were larger but stayed the same distance from Earth, annular eclipses would happen more often. True or false?
False – a bigger Moon covers the Sun more easily
True – a bigger Moon would leave a wider ring of sunlight
True – size has no effect, only distance
False – eclipses would stop happening at all
  • 1
  • 2
  • 3
  • 4
  • 5
  • 6
  • 7
  • 8
  • 9
  • 10
  • 11
  • 12
  • 13
  • 14
  • 15
  • 16
  • 17
  • 18
  • 19
  • 20
  • 21
  • 22
  • 23
  • 24
  • 25
  • 26
  • 27
  • 28
  • 29
  • 30
  • 31
  • 32
  • 33
  • 34
  • 35
  • 36
  • 37
  • 38
  • 39
  • 40
  • 41
  • 42
  • 43
  • 44
  • 45
  • 46
  • 47
  • 48
  • 49
  • 50
Part of Unit 6: Sound and space — see every lesson and quiz in this unit.
Accepted payment methods
