Question 1
Paper Ref: 0610/22_Winter_2013_Q18

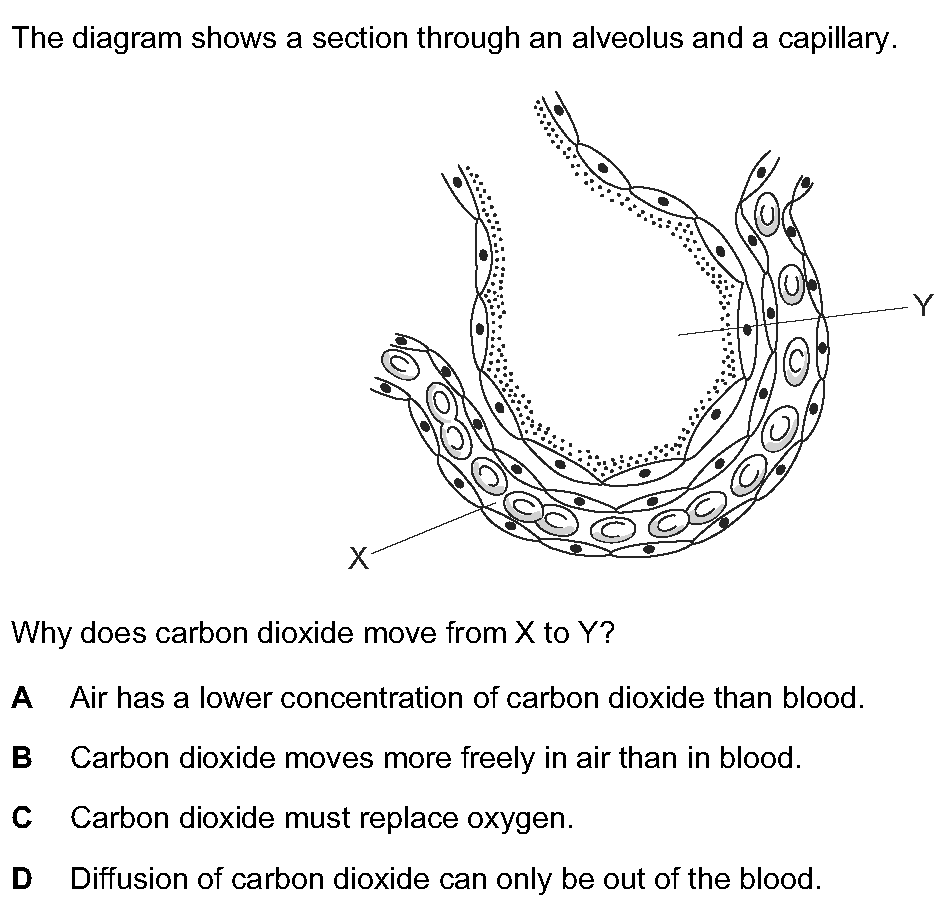

The diagram shows a section through an alveolus and a capillary.
Why does carbon dioxide move from X to Y?
Air has a lower concentration of carbon dioxide than blood.
is]
Carbon dioxide moves more freely in air than in blood.
Qa
Carbon dioxide must replace oxygen.
D Diffusion of carbon dioxide can only be out of the blood.

Options:
A
B
C
D
Correct Key: A

Question 2
Paper Ref: 0610/21_Winter_2013_Q20

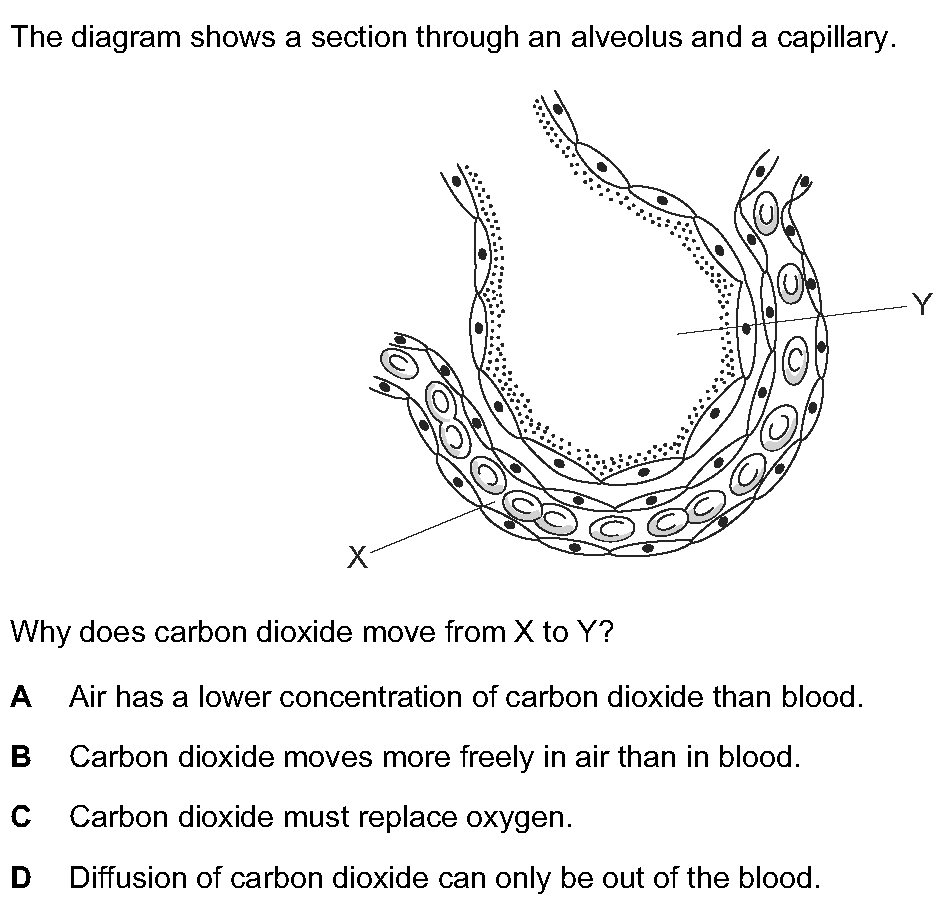

The diagram shows a section through an alveolus and a capillary.
Why does carbon dioxide move from X to Y?
A Air has a lower concentration of carbon dioxide than blood.
B Carbon dioxide moves more freely in air than in blood.
C Carbon dioxide must replace oxygen.
D
Diffusion of carbon dioxide can only be out of the blood.

Options:
A
B
C
D
Correct Key: A

Question 3
Paper Ref: 0610/12_Summer_2023_Q23

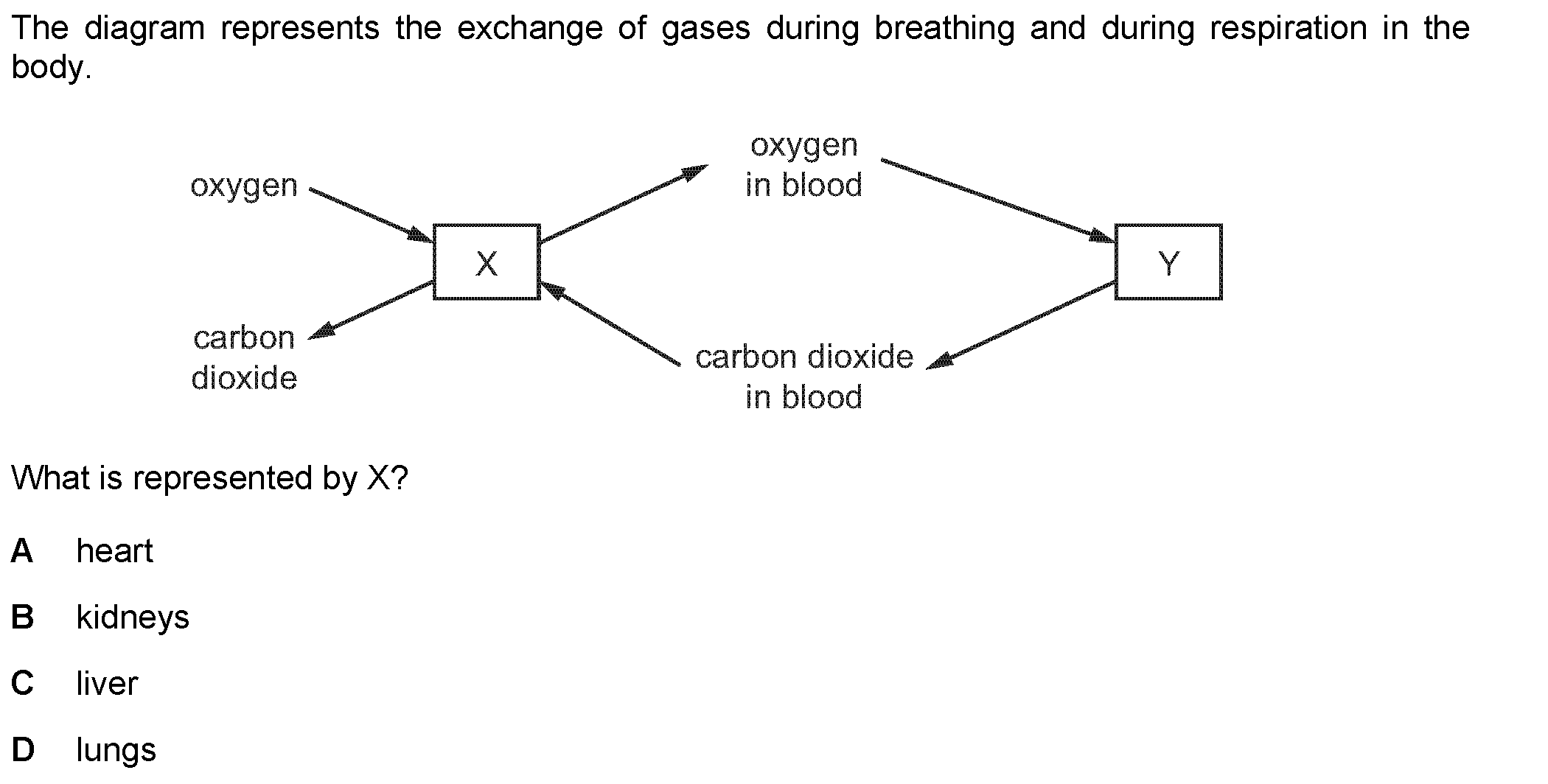

The diagram represents the exchange of gases during breathing and during respiration in the
body.
oxygen
oxygen in blood
carbon dioxide
in blood
carbon
dioxide
What is represented by X?
A heart
B_ kidneys
C siiver
D lungs

Options:
A
B
C
D
Correct Key: D

Question 4
Paper Ref: 5129/12_Summer_2023_Q5

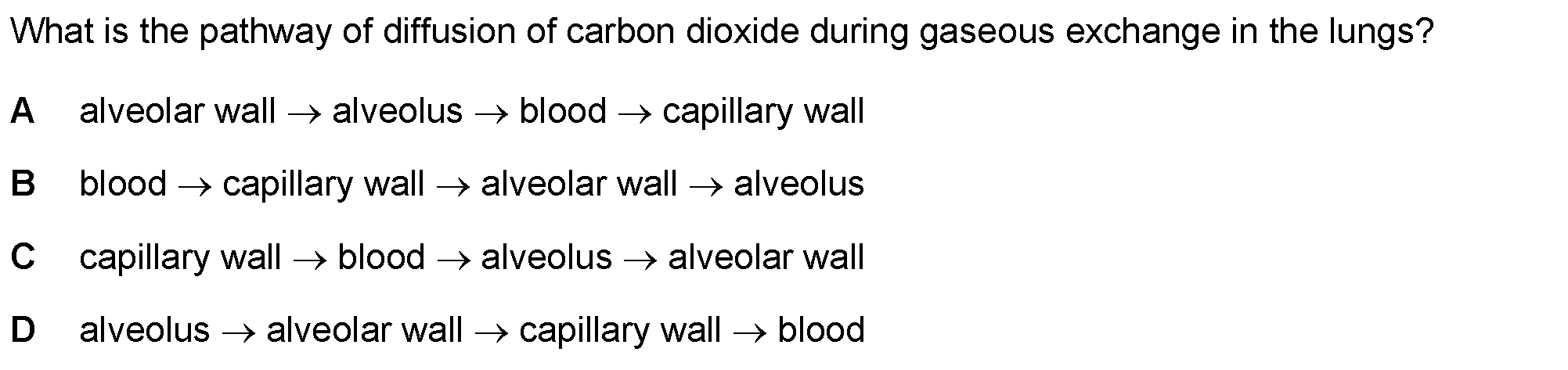

What is the pathway of diffusion of carbon dioxide during gaseous exchange in the lungs?
A alveolar wall > alveolus — blood > capillary wall
B_ blood > capillary wall > alveolar wall > alveolus
C_ capillary wall > blood —> alveolus — alveolar wall
D
alveolus — alveolar wall > capillary wall > blood

Options:
A
B
C
D
Correct Key: B

Question 5
Paper Ref: 0610/22_Winter_2019_Q19

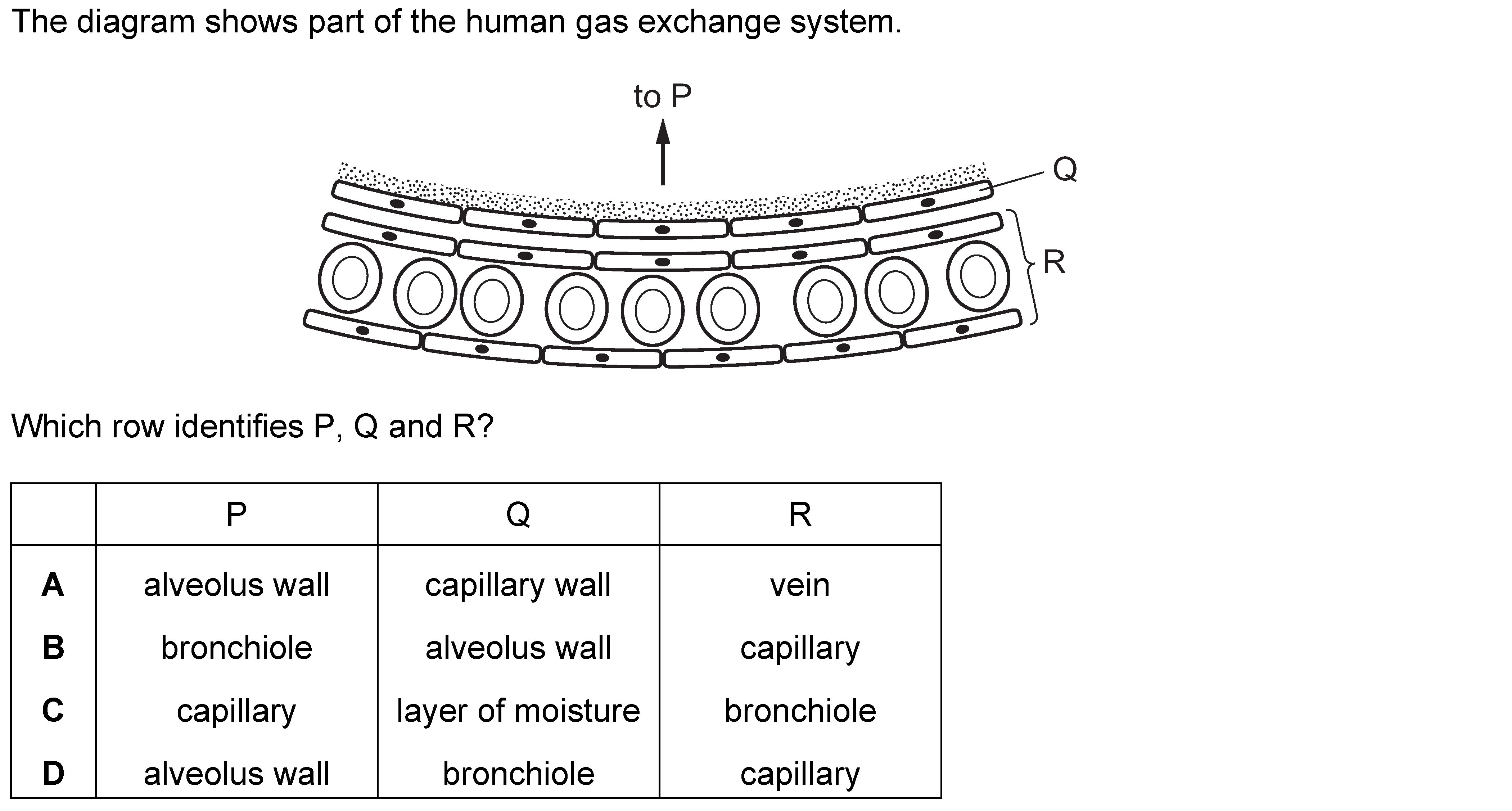

The diagram shows part of the human gas exchange system.
alveolus wall capillary wall vein
bronchiole alveolus wall capillary
capillary layer of moisture bronchiole
alveolus wall bronchiole capillary

Options:
A
B
C
D
Correct Key: B

Question 6
Paper Ref: 5129/12_Winter_2022_Q8

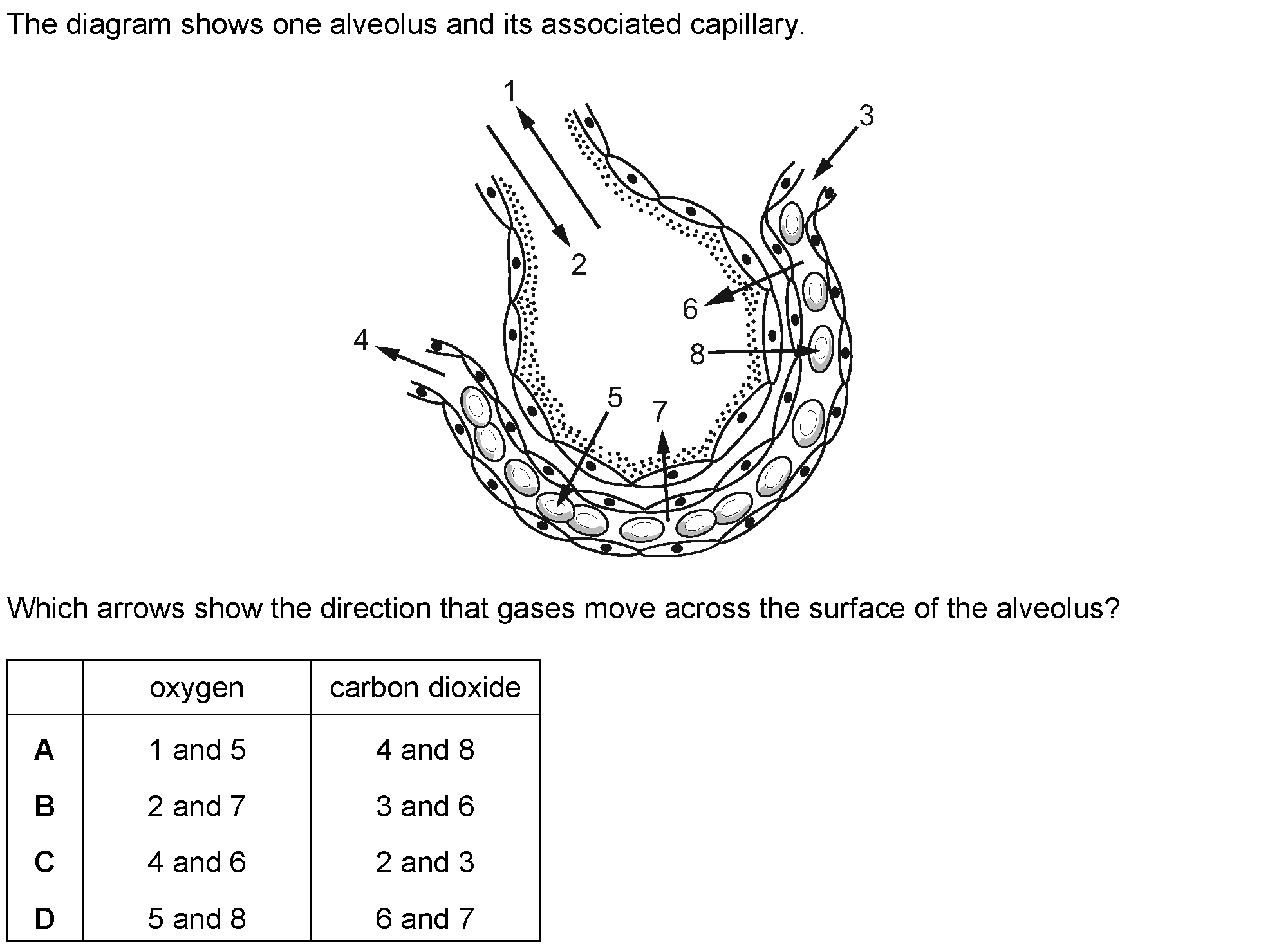

The diagram shows one alveolus and its associated capillary.
Which arrows show the direction that gases move across the surface of the alveolus?
[agen [eaten doxae
A

Options:
A
B
C
D
Correct Key: D

Question 7
Paper Ref: 0610/22_Winter_2023_Q21

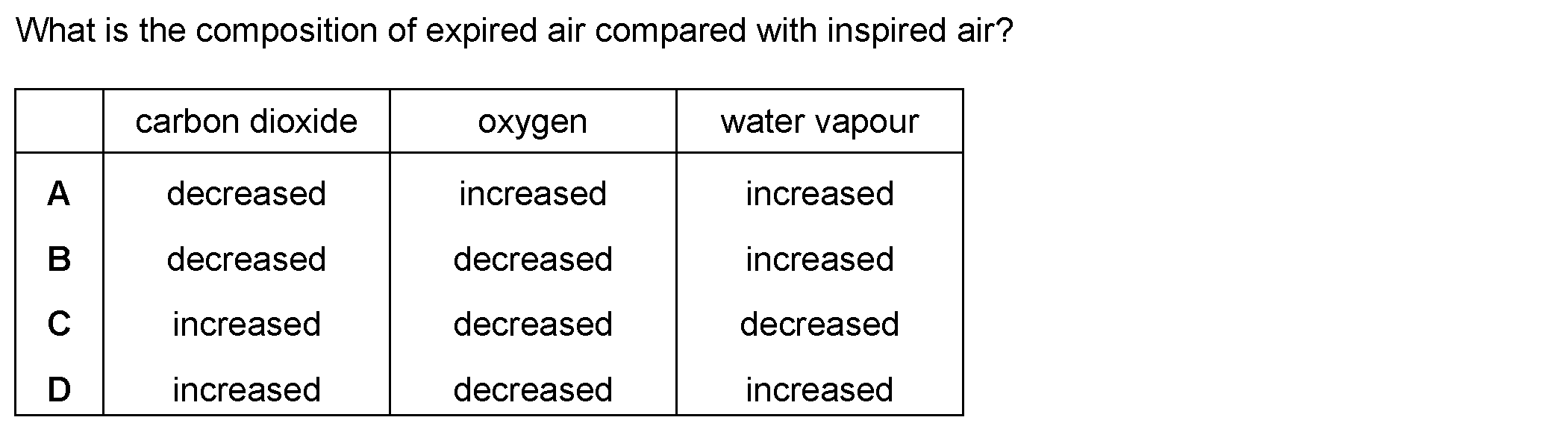

What is the composition of expired air compared with inspired air?
— carbon dioxide oxygen water vapour
decreased increased increased
decreased decreased increased
increased decreased decreased
increased decreased increased

Options:
A
B
C
D
Correct Key: D

Question 8
Paper Ref: 0610/22_Spring_2020_Q22

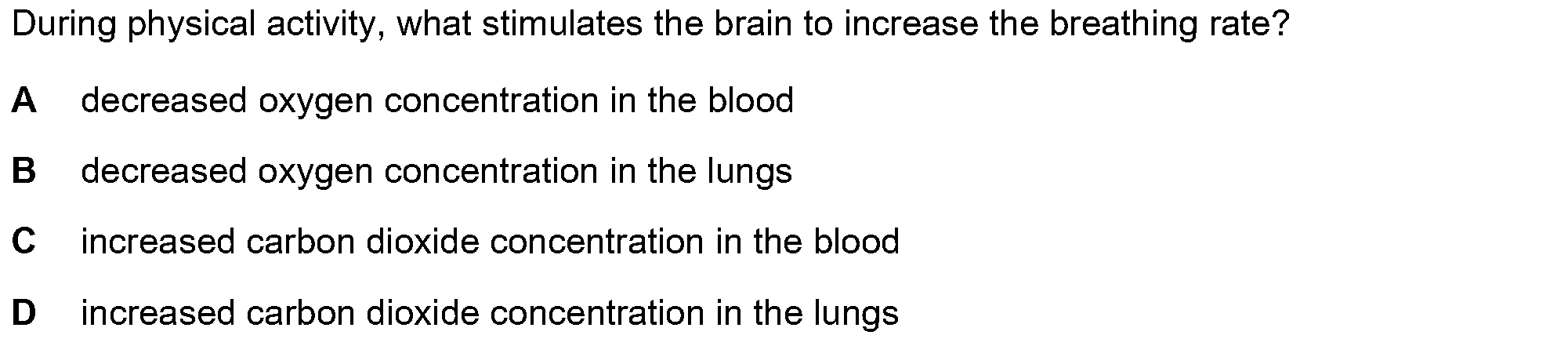

During physical activity, what stimulates the brain to increase the breathing rate?
A
B
Cc
D
decreased oxygen concentration in the blood
decreased oxygen concentration in the lungs
increased carbon dioxide concentration in the blood
increased carbon dioxide concentration in the lungs

Options:
A
B
C
D
Correct Key: C

Question 9
Paper Ref: 0610/22_Winter_2009_Q7

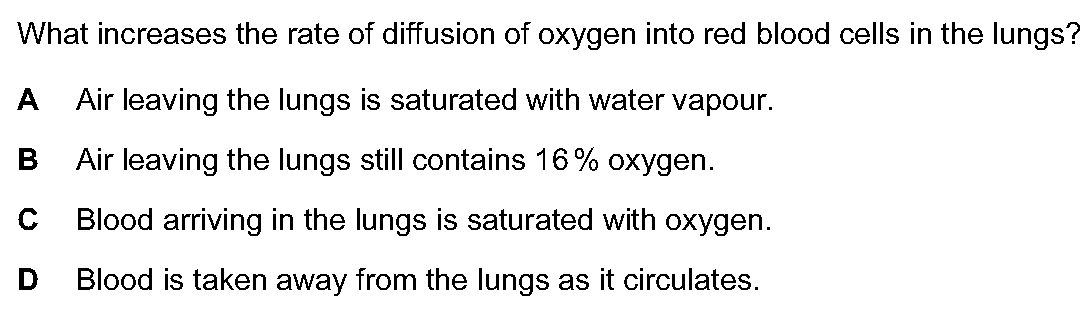

What increases the rate of diffusion of oxygen into red blood cells in the lungs?
oo BD
Air leaving the lungs is saturated with water vapour.
Air leaving the lungs still contains 16% oxygen.
Blood arriving in the lungs is saturated with oxygen.
Blood is taken away from the lungs as it circulates.

Options:
A
B
C
D
Correct Key: D

Question 10
Paper Ref: 5129/12_Summer_2025_Q7

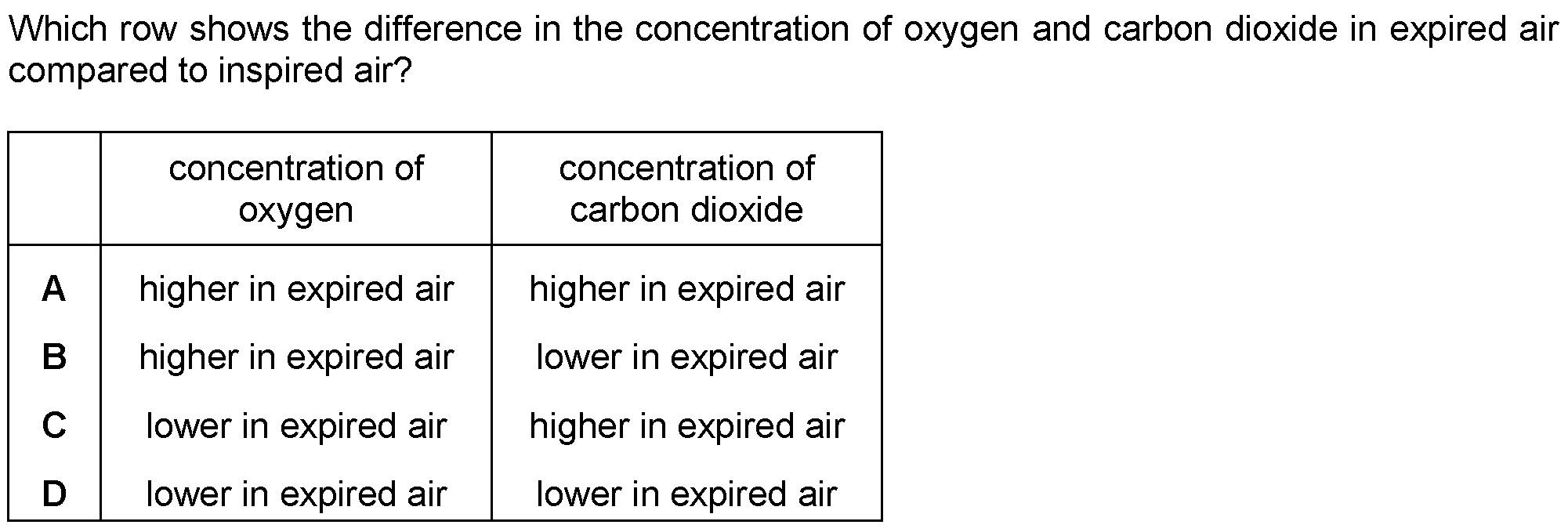

Which row shows the difference in the concentration of oxygen and carbon dioxide in expired air
compared to inspired air?
concentration of concentration of
oxygen carbon dioxide
higher in expired air higher in expired air
higher in expired air lower in expired air
lower in expired air higher in expired air
lower in expired air lower in expired air

Options:
A
B
C
D
Correct Key: C

Question 11
Paper Ref: 5129/12_Winter_2025_Q7

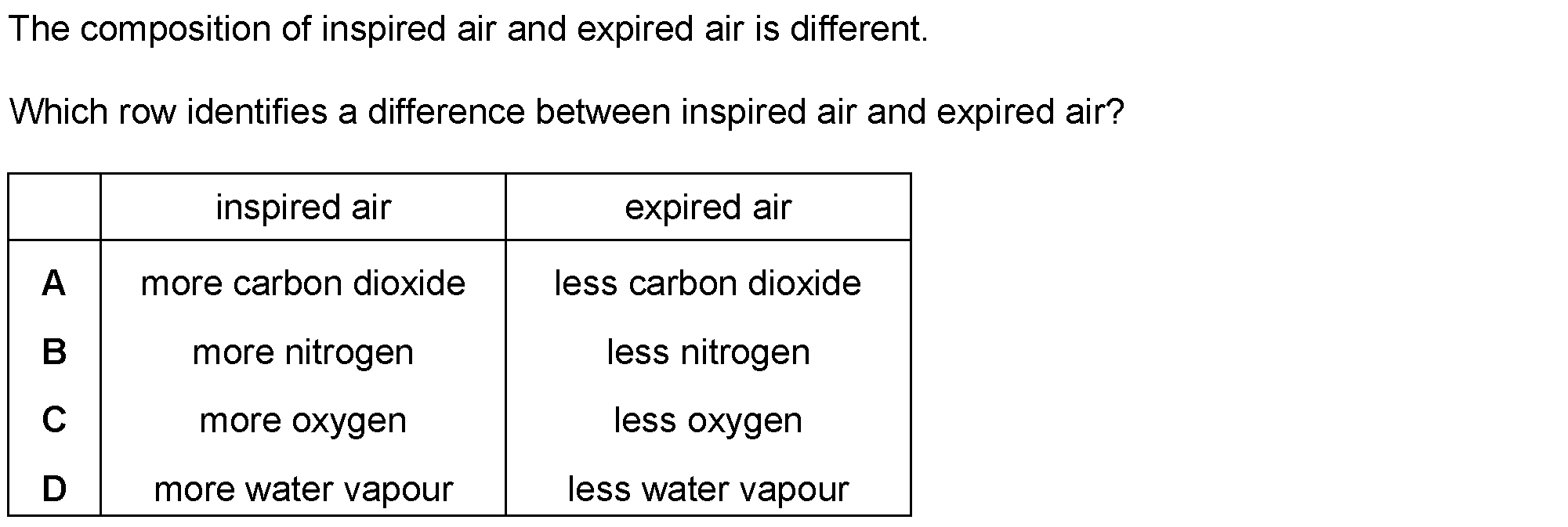

The composition of inspired air and expired air is different.
Which row identifies a difference between inspired air and expired air?
— inspired air expired air
more carbon dioxide less carbon dioxide
more nitrogen less nitrogen
more oxygen less oxygen
more water vapour less water vapour

Options:
A
B
C
D
Correct Key: C

Question 12
Paper Ref: 0610/11_Winter_2017_Q22

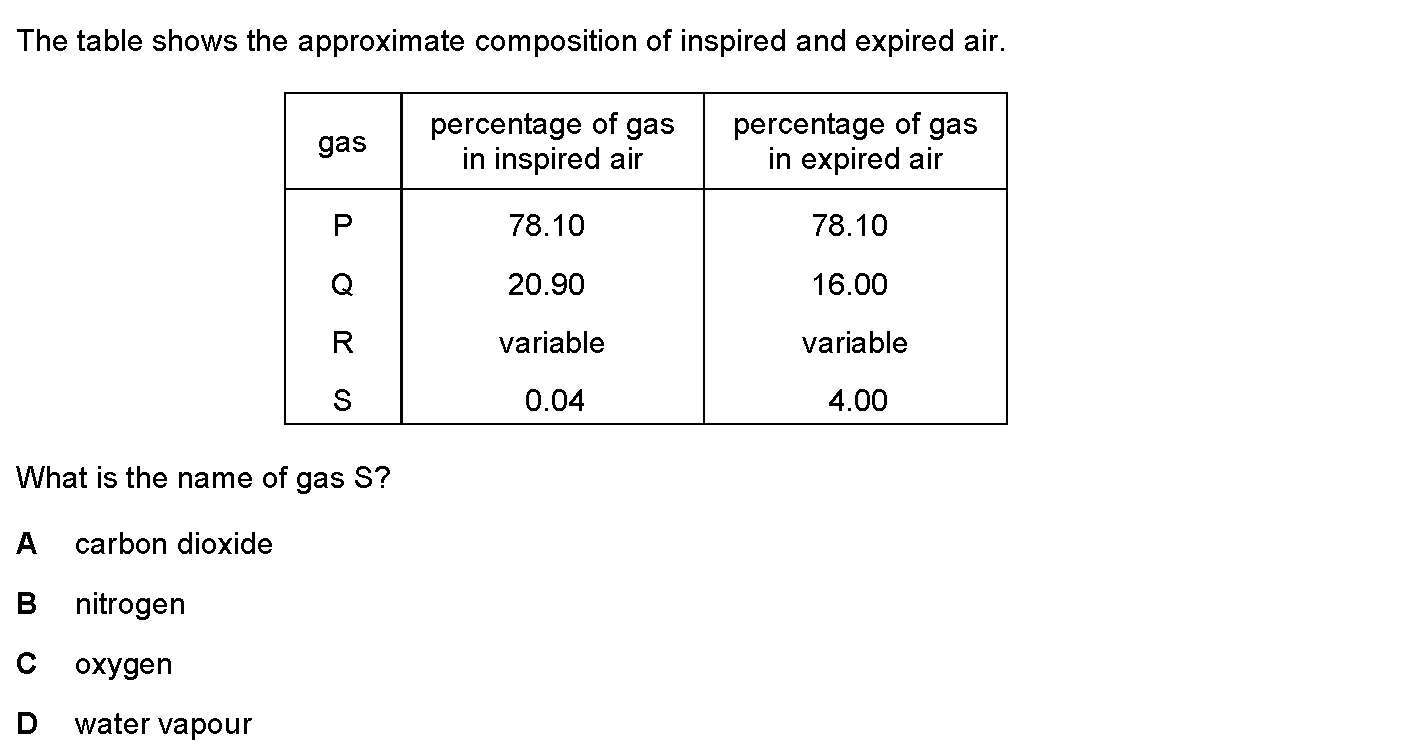

The table shows the approximate composition of inspired and expired air.
percentage of gas percentage of gas
gas cs : : : :
in inspired air in expired air
P 78.10 78.10
Q 20.90 16.00
R variable variable
Ss 0.04 4.00
What is the name of gas S?
A carbon dioxide
B nitrogen
C oxygen
D
water vapour

Options:
A
B
C
D
Correct Key: A

Question 13
Paper Ref: 0610/13_Winter_2025_Q9

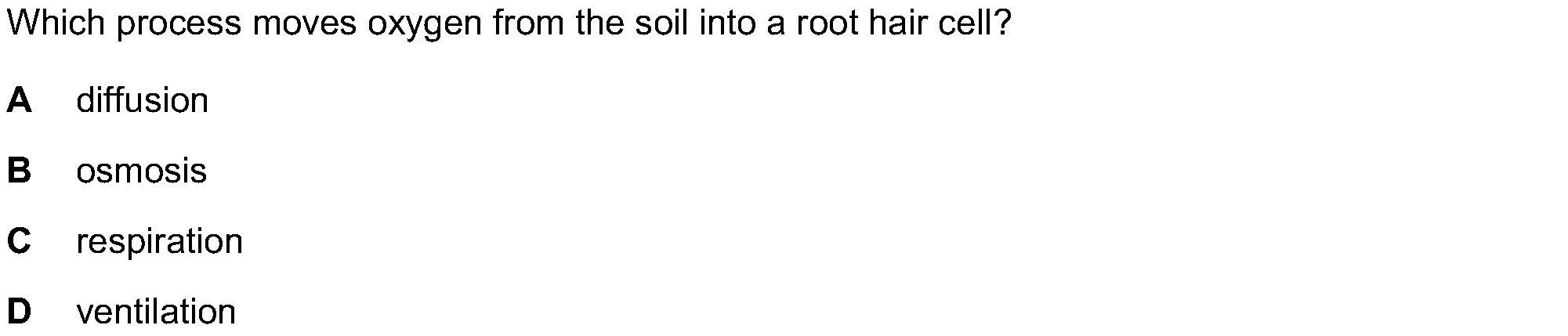

Which process moves oxygen from the soil into a root hair cell?
A diffusion
B osmosis
C_ respiration
D ventilation

Options:
A
B
C
D
Correct Key: A

Question 14
Paper Ref: 5129/12_Summer_2024_Q5

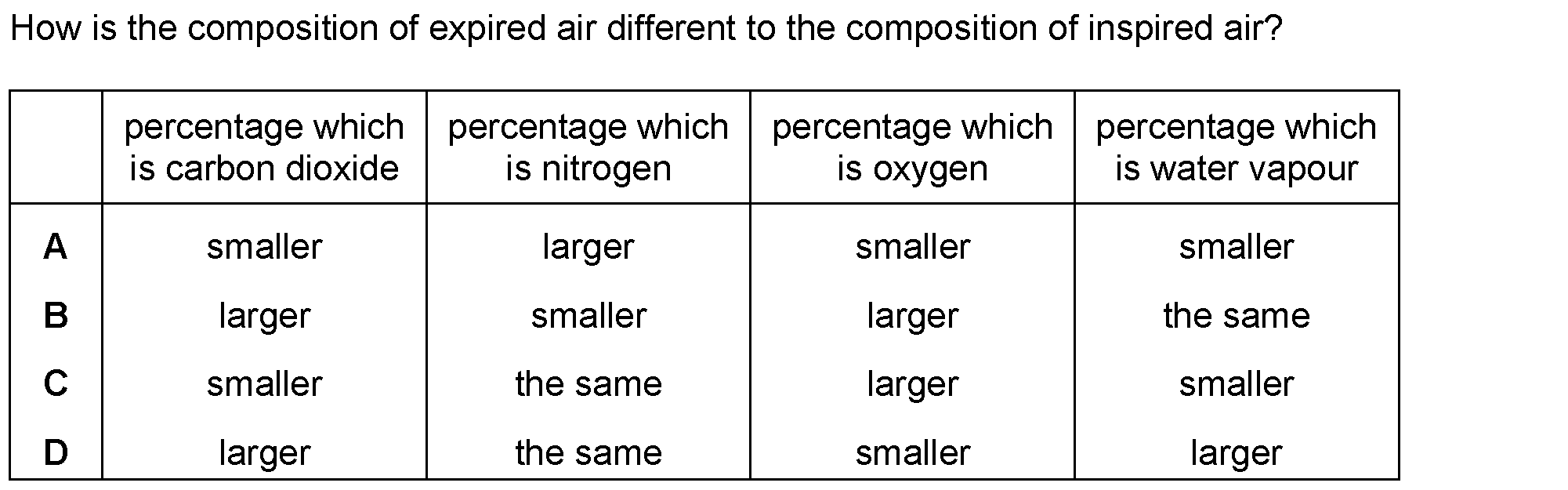

How is the composition of expired air different to the composition of inspired air?
percentage which | percentage which | percentage which | percentage which
is carbon dioxide is nitrogen is oxygen is water vapour
smaller larger smaller smaller
larger smaller larger the same
smaller the same larger smaller
larger the same smaller larger

Options:
A
B
C
D
Correct Key: D

Question 15
Paper Ref: 0610/22_Spring_2022_Q20

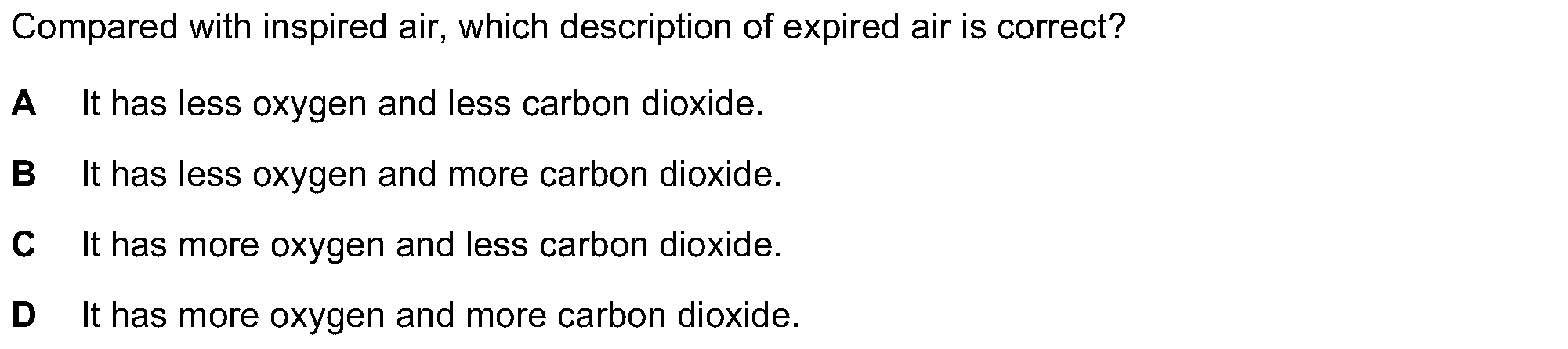

Compared with inspired air, which description of expired air is correct?
A
B
Cc
D
It has less oxygen and less carbon dioxide.
It has less oxygen and more carbon dioxide.
It has more oxygen and less carbon dioxide.
It has more oxygen and more carbon dioxide.

Options:
A
B
C
D
Correct Key: B
